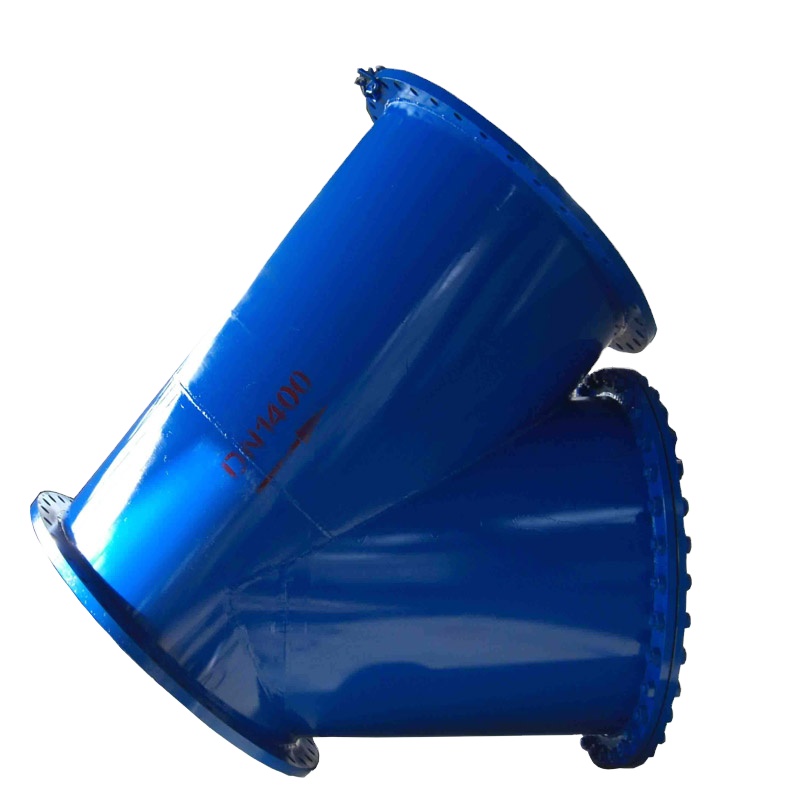

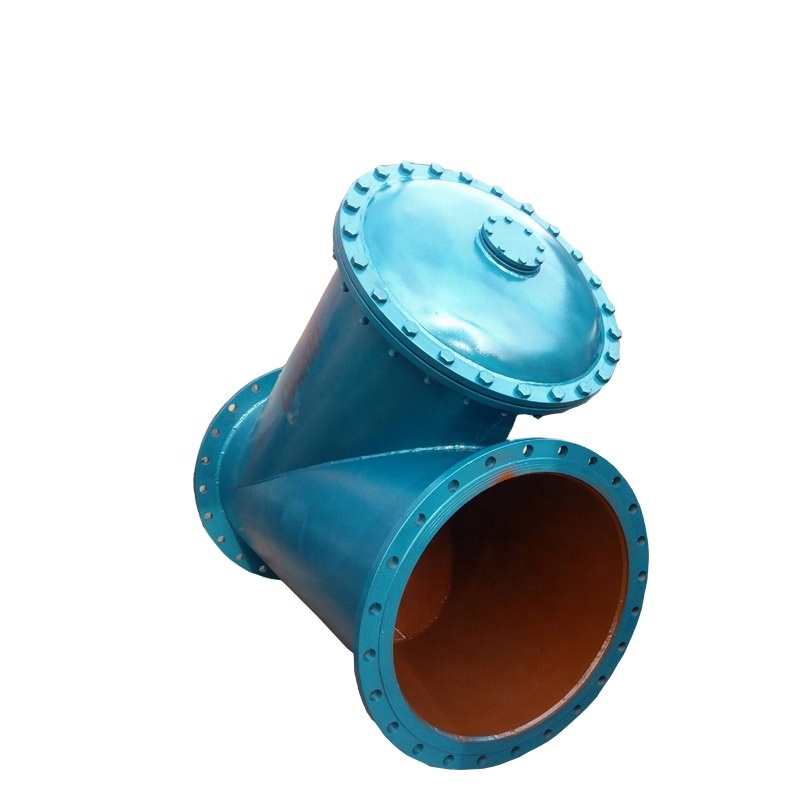

Y type Basket Filter machine for coarse filtration in pipes
✧ Product Features
Mainly used on pipes for filtering liquids, thus filtering impurities from the pipes (closed, coarse filtration). The shape of stainless steel filter screen is like a basket.
The main function of the equipment is to remove large particles (coarse filtration), purify the fluid of the pipeline, and protect critical equipment (installed in front of the pump or other machines).
1. Configure the filtration degree of the filter screen according to customer needs.
2. The structure is simple, easy to install, operate, disassemble and maintain.
3. Less wearing parts, low operation and maintenance costs.
4. The stable production process can protect instruments and mechanical equipment and maintain the safety and stability of the whole process.
5. The core part of is the filter basket, which is generally welded with a stainless steel punching mesh and a layer stainless steel wire mesh.
6. The housing can be made of carbon steel, SS304, SS316L, or duplex stainless steel.
7. Filter basket is made of stainless steel.
8. Remove large particles, manual regular cleaning the filter basket and used again and again.
9. The suitable viscosity of the equipment is (cp)1-30000; The suitable working temperature is -20--+250℃; Design pressure is 1.0/1.6/2.5Mpa.
✧ Feeding Process
✧ Application Industries
The application scope of this equipment is petroleum, chemical, pharmaceutical, food, environmental protection, low temperature materials, chemical corrosion materials and other industries. In addition, it is mainly suitable for liquids containing various trace impurities and has a wide range of applicability.
