Pharmaceutical and biological stainless steel filter presses
✧ Product Features
A. Filtration pressure: 0.6Mpa---1.0Mpa
B. Filtration temperature：45℃/ room temperature; 100℃/ high temperature; 200℃/ High temperature.
C. Liquid discharge method - close flow: Under the feed end of the filter press, there are two close flow outlet main pipes, which are connected with the liquid recovery tank. If the liquid needs to be recovered, or if the liquid is volatile, smelly, flammable and explosive, dark flow is used.
D-1. Selection of filter cloth material: The PH of the liquid determines the material of the filter cloth. PH1-5 is acidic polyester filter cloth, PH8-14 is alkaline polypropylene filter cloth.
D-2. Selection of filter cloth mesh: The fluid is separated, and the corresponding mesh number is selected for different solid particle sizes. Filter cloth mesh range 100-1000 mesh. Micron to mesh conversion (1UM = 15,000 mesh---in theory).
D-3. Stainless steel plate frame filter press can be used with filter paper, higher filtration accuracy.
E. Pressing method: jack, manual cylinder, electro-mechanical pressing, automatic cylinder pressing.
| Filter Press Model Guidance | |||||
| Liquid name | Solid-liquid ratio (%) | Specific gravity of solids | Material status | PH value | Solid particle size (mesh) |
| Temperature (℃) | Recovery of liquids/solids | Water content of filter cake | Working hours/day | Capacity/day | Whether the liquid evaporates or not |
✧ Feeding Process
✧ Application Industries
It is used for fluid filtration with high viscosity and frequent cleaning of filter cloth, such as filtration of medicine, fermentation liquid, liquor, pharmaceutical intermediates, beverage, and dairy products.
✧ Filter Press Ordering Instructions
1. Refer to the filter press selection guide, filter press overview, specifications and models, select the model and supporting equipment according to the needs.
For example: Whether the filter cake is washed or not, whether the effluent is open or close, whether the rack is corrosion-resistant or not, the mode of operation, etc., must be specified in the contract.
2. According to the special needs of customers, our company can design and produce non-standard models or customized products.
3. The product pictures provided in this document are for reference only. In case of changes, we will not give any notice and the actual order will prevail.

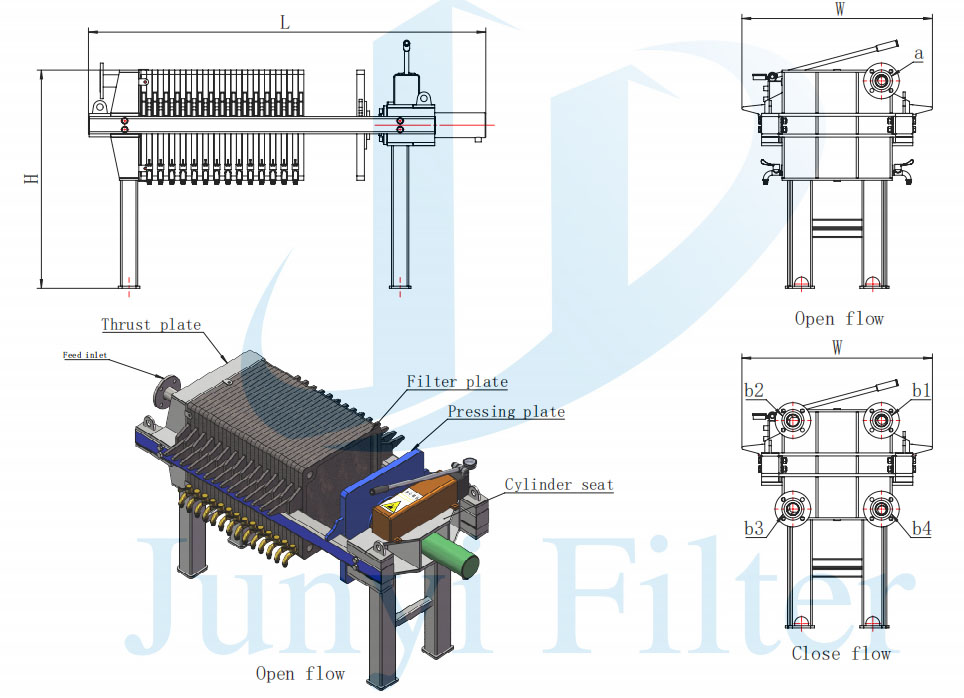

✧ Plate And Frame Filter Press
| Model | Filter Area (m²) |
Plate Size (mm) |
Chamber volume (L) |
Plate Qty (PCS) |
Filter Frame Number (PCS) |
Overall Weight (Kg) |
Motor Power (Kw) |
Overall dimension(mm) | Inlet Size (a) |
Outlet/close flow size (b) |
Outlet/open flow size |
||
| Length (L) |
Width (W) |
Height (H) |
|||||||||||
| JYFPPMP-4-450 | 4 | 450 X 450 |
60 | 9 | 10 | 830 | 2.2 | 2180 | 700 | 900 | DN50 | DN50 | G1/2 |
| JYFPPMP-8-450 | 8 | 120 | 19 | 20 | 920 | 2780 | |||||||
| JYFPPMP-10-450 | 10 | 150 | 24 | 25 | 9800 | 3080 | |||||||
| JYFPPMP-12-450 | 12 | 180 | 29 | 30 | 1010 | 3380 | |||||||
| JYFPPMP-16-450 | 16 | 240 | 39 | 40 | 1120 | 3980 | |||||||
| JYFPPMP-15-700 | 15 | 700 X 700 |
225 | 18 | 19 | 1710 | 2.2 | 2940 | 900 | 1100 | DN65 | DN50 | G1/2 |
| JYFPPMP-20-700 | 20 | 300 | 24 | 25 | 1960 | 3300 | |||||||
| JYFPPMP-30-700 | 30 | 450 | 37 | 38 | 2315 | 4080 | |||||||
| JYFPPMP-40-700 | 40 | 600 | 49 | 50 | 2588 | 4900 | |||||||
| JYFPPMP-30-870 | 30 | 870 X 870 |
450 | 23 | 24 | 2380 | 4.0 | 3670 | 1200 | 1300 | DN80 | DN65 | G1/2 |
| JYFPPMP-40-870 | 40 | 600 | 30 | 31 | 2725 | 4150 | |||||||
| JYFPPMP-50-870 | 50 | 750 | 38 | 39 | 3118 | 4810 | |||||||
| JYFPPMP-60-870 | 60 | 900 | 46 | 47 | 3512 | 5370 | |||||||
| JYFPPMP-80-870 | 80 | 1200 | 62 | 63 | 4261 | 6390 | |||||||
