Clay High Pressure Circular Filter Press
✧ Product Features
A. Filtration pressure: 0.2Mpa
B. Discharge method - open flow: The water out of the bottom of the filter plate is used with a receiving tank; Or matching liquid catching flap + water catching tank.
C. Choice of filter cloth material: PP non-woven cloth
D. Rack surface treatment: PH value neutral or weak acid base; The surface of the filter press frame is sandblasted first, and then sprayed with primer and anti-corrosion paint. The PH value is strong acid or strong alkaline, the surface of the filter press frame is sandblasted, sprayed with primer, and the surface is wrapped with stainless steel or PP plate.
Circular filter press operation: automatic hydraulic pressing, filter plate automatically open, filter plate vibration unloading cake, filter cloth automatic water flushing system.
E. Circle filter press supporting the choice of feed pump: high-pressure plunger pump, please email for details.
| Filter Press Model Guidance | |||||
| Liquid name | Solid-liquid ratio (%) | Specific gravity of solids | Material status | PH value | Solid particle size (mesh) |
| Temperature (℃) | Recovery of liquids/solids | Water content of filter cake | Working hours/day | Capacity/day | Whether the liquid evaporates or not |
✧ Feeding Process
✧ Application Industries
Solid-liquid separation for stone wastewater, ceramics, kaolin, bentonite, activated soil, building materials and other industries.
✧ Filter Press Ordering Instructions
1. Refer to the filter press selection guide, filter press overview, specifications and models, select the model and supporting equipment according to the needs.
For example: Whether the filter cake is washed or not, whether the effluent is open or close, whether the rack is corrosion-resistant or not, the mode of operation, etc., must be specified in the contract.
2. According to the special needs of customers, our company can design and produce non-standard models or customized products.
3. The product pictures provided in this document are for reference only. In case of changes, we will not give any notice and the actual order will prevail.
✧ Circular Filter Press
| Model | Filter area (m²) |
Plate Size (mm) |
Chamber volume (L) |
Plate Qty (pcs) |
Weight (Kg) |
Motor Power (Kw) |

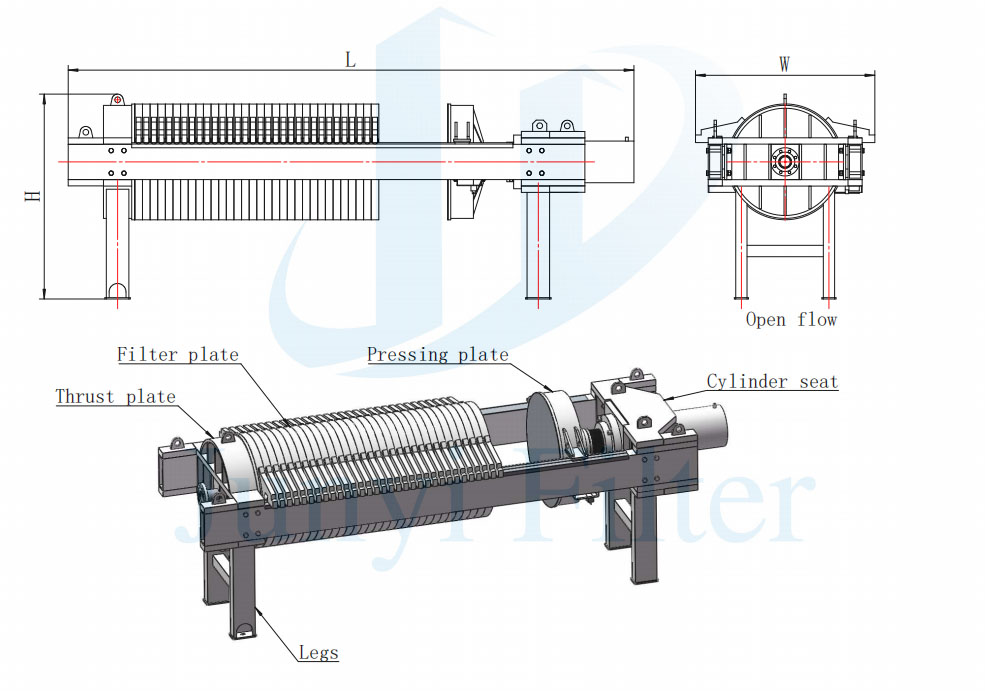

Overall dimension(mm) | Inlet | Outlet | ||
| Length (L) |
Width (W) |
Height(H) | |||||||||
| JYFPRA30/800 | 30 | Φ800 | 377 | 30 | 3590 | 4.0 | 3780 | 1200 | 1100 | DN80 | G1/2 |
| JYFPRA40/800 | 40 | 499 | 40 | 4554 | 4300 | ||||||
| JYFPRA60/800 | 60 | 750 | 60 | 5600 | 5340 | ||||||
| JYFPRA80/800 | 80 | 1160 | 80 | 6860 | |||||||
| JYFPRA60/1000 | 60 | Φ1000 | 790 | 45 | 4510 | 5.5 | 4705 | 1500 | 1400 | DN80 | G3/6 |
| JYFPRA80/1000 | 80 | 1030 | 60 | 4968 | 5500 | ||||||
| JYFPRA100/1000 | 100 | 1320 | 76 | 5685 | 6348 | ||||||
| JYFPRA90/1250 | 90 | Φ1250 | 1160 | 41 | 7687 | 7.5 | 4905 | 1800 | 1600 | DN100 | G3/4 |
| JYFPRA130/1250 | 130 | 1700 | 60 | 8777 | 5950 | ||||||
| JYFPRA160/1250 | 160 | 2090 | 74 | 10490 | 6720 | ||||||
| JYFPRA200/1250 | 200 | 2550 | 92 | 13060 | 7710 | ||||||
| JYFPRA120/1500 | 120 | Φ1500 | 1550 | 37 | 13636 | 11.0 | 5150 | 2200 | 1900 | DN1250 | G1 |
| JYFPRA180/1500 | 180 | 2350 | 57 | 17134 | 6350 | ||||||
| JYFPRA230/1500 | 230 | 3000 | 73 | 19466 | 7310 | ||||||
| JYFPRA300/1500 | 300 | 3900 | 85 | 24130 | 8030 | ||||||
