Automatic PP Plate And Frame Filter Press for Wine Beer Precision Filtration Industry
✧ Product Features
A. Filtration pressure: 0.5Mpa
B. Filtration temperature: 45℃/ room temperature; 80℃/ high temperature.

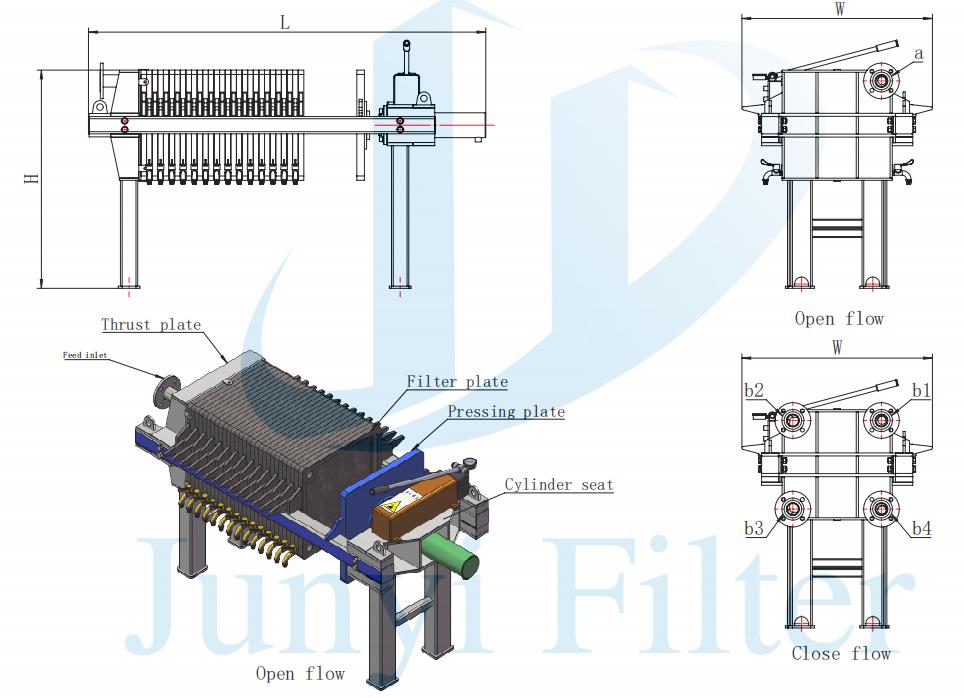

C. Liquid discharge method: Each filter plate is fitted with a faucet and matching catch basin.
The liquid that is not recovered adopts open flow; Close flow: there are 2 dark flow main pipes below the feed end of the filter press and if the liquid needs to be recovered or the liquid is volatile, smelly, flammable and explosive, close flow is used.
D-1. Selection of filter cloth material: The PH of the liquid determines the material of the filter cloth. PH1-5 is acidic polyester filter cloth, PH8-14 is alkaline polypropylene filter cloth.
D-2. Selection of filter cloth mesh: The fluid is separated, and the corresponding mesh number is selected for different solid particle sizes. Filter cloth mesh range 100-1000 mesh. Micron to mesh conversion (1UM = 15,000 mesh---in theory).
E. Pressing method: jack, manual cylinder, electro-mechanical pressing, automatic cylinder pressing.
F. Filter cake washing: if it is necessary to recover solids, the filter cake is strongly acidic or alkaline.
✧ Feeding Process
✧ Application Industries
It is widely used in solid-liquid separation process in petroleum, chemical, dyestuff, metallurgy, pharmacy, food, coal washing, inorganic salt, alcohol, chemical, metallurgy, pharmacy, light industry, coal, food, textile, environmental protection, energy and other industries.
✧ Filter Press Ordering Instructions
1. Refer to the filter press selection guide, filter press overview, specifications and models, select the model and supporting equipment according to the needs.
For example: Whether the filter cake is washed or not, whether the effluent is open or close, whether the rack is corrosion-resistant or not, the mode of operation, etc., must be specified in the contract.
2. According to the special needs of customers, our company can design and produce non-standard models or customized products.
3. The product pictures provided in this document are for reference only. In case of changes, we will not give any notice and the actual order will prevail.
